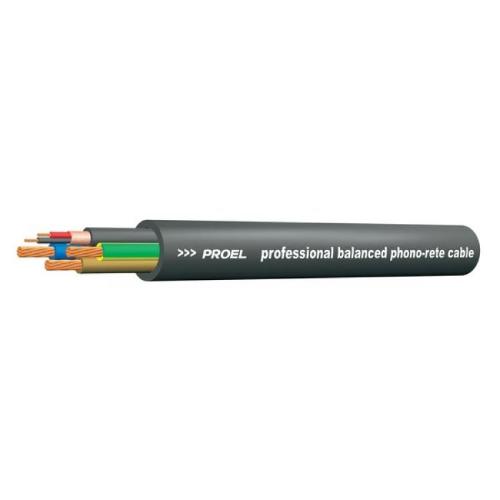

Cavo professionale combinato di tipo audio + alimentazione (BOBINA 100 METRI)
| Price: | €469,00 VAT included (22%)Payable in installments Calculate your installment |
|---|---|
| Item code: | HPC501 |
| Marca: |  |
| Spedizione: | Spedizione Gratuita per ordini da 199€ |
| Ordina entro: | |
| Permuta: |
|
| Availability: | Not available |
| Quantity: |
Services
PrintTell me when price will be reducedTell me when the product will become availableShareAsk for informationUsers feedback
Description
BOBINA 100 METRI
Cavo professionale combinato di tipo audio + alimentazione. Composto da una coppia audio bilanciata, twistata e individualmente isolata + cavo di alimentazione elettrica monofase. Guaina esterna in PVC flessibile antifiamma. Modelli disponibili: HPC501 - Audio 2 x 0.35 mm2 + Power 3 x 1.50 mm2 / HPC502 - Audio 2 x 0.35 mm2 - Power 3 x 2.50 mm2. Colore nero. Bobina in legno 100 m.
SPECIFICHE TECNICHE
Application fields: Audio connections
Conductors: Bare copper
Power: 16 AWG = 3x29x0.25 mm (1,5 mm2)
Signal: 22 AWG = 2x11x0.20 mm (0.35 mm2)
Insulation:
Power: PVC 60 shore Ø 3.0 mm
Signal: PVC HT105 Ø 1.50 mm
Shield: Spiral red copper 4x16x0.12 90%
Jacket: Flexible PVC 60 shore Ø 10.80 mm - Complying with CEI 20-35 (IEC 332.1)regulations
Color: Black
Electrical resistance: 12 Ohm/Km @ 20°C (Power) / 54.5 Ohm/Km @ 20°C (Signal)
Electrical capacitance: 124 pF/m (signal) @ 1 KHz
Operating temperature: -10°C / +60°C
Working tension:
Power: 300/500 V
Signal: < 50 V AC / < 75 V DC
Weight: 182 Kg/Km
Minumum bendig radius: 10 x cable section radius
Packaging: 100 m wooden or wood fiber reel
Cavo professionale combinato di tipo audio + alimentazione. Composto da una coppia audio bilanciata, twistata e individualmente isolata + cavo di alimentazione elettrica monofase. Guaina esterna in PVC flessibile antifiamma. Modelli disponibili: HPC501 - Audio 2 x 0.35 mm2 + Power 3 x 1.50 mm2 / HPC502 - Audio 2 x 0.35 mm2 - Power 3 x 2.50 mm2. Colore nero. Bobina in legno 100 m.
SPECIFICHE TECNICHE
Application fields: Audio connections
Conductors: Bare copper
Power: 16 AWG = 3x29x0.25 mm (1,5 mm2)
Signal: 22 AWG = 2x11x0.20 mm (0.35 mm2)
Insulation:
Power: PVC 60 shore Ø 3.0 mm
Signal: PVC HT105 Ø 1.50 mm
Shield: Spiral red copper 4x16x0.12 90%
Jacket: Flexible PVC 60 shore Ø 10.80 mm - Complying with CEI 20-35 (IEC 332.1)regulations
Color: Black
Electrical resistance: 12 Ohm/Km @ 20°C (Power) / 54.5 Ohm/Km @ 20°C (Signal)
Electrical capacitance: 124 pF/m (signal) @ 1 KHz
Operating temperature: -10°C / +60°C
Working tension:
Power: 300/500 V
Signal: < 50 V AC / < 75 V DC
Weight: 182 Kg/Km
Minumum bendig radius: 10 x cable section radius
Packaging: 100 m wooden or wood fiber reel
